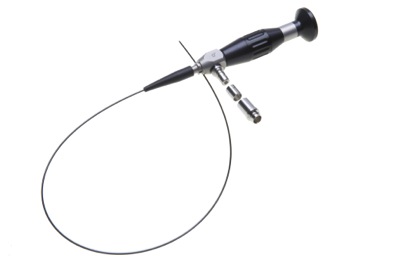

microFlex micro-fibre endoscopes are developed especially for industrial applications with tight inspection apertures or small drill holes. microFlex endoscopes are ideal for inspecting small workpieces, delicate drill holes, injection tubes, turbine blades, random inspection in large series production and security relevant parts. microFlex fibrescopes are available in different configurations with probe diameter from as small as 0.5mm to 1.8mm. All microFlex fibrescopes are available in customer specific working length of up to 2.0m.
| 探頭 ? 6.0mm | ||||
| 長度 | 彎曲 |
DoV |
FoV | 像素 |
| 1.0m | 2 方向 ±120° L/R | 0°/90° | 60° | 12000 |
| 1.5m | 2 方向 ±120° L/R | 0°/90° | 60° | 12000 |
| 2.0m | 2 方向 ±120° L/R | 0°/90° | 60° | 12000 |
| 2.7m | 2 方向 ±120° L/R | 0°/90° | 60° | 12000 |
| 1.0m | 4-方向 ±100° L/R - 160° UP - 130° DW | 0°/90° | 60° | 12000 |
| 1.5m | 4-方向 ±100° L/R - 160° UP - 130° DW | 0°/90° | 60° | 12000 |
| 2.0m | 4-方向 ±100° L/R - 160° UP - 130° DW | 0°/90° | 60° | 12000 |
| 2.7m | 4-方向 ±100° L/R - 160° UP - 130° DW | 0°/90° | 60° | 12000 |
| 探頭 ? 8.0mm |
探測 |
|||
| 長度 | 彎曲 |
DoV |
FoV | 像素 |
| 1.0m | 4-方向 ±100° L/R - 160° UP - 130° DW | 0°/90° | 60° | 12000 |
| 1.5m | 4-方向 ±100° L/R - 160° UP - 130° DW | 0°/90° | 60° | 12000 |
| 2.0m | 4-方向 ±100° L/R - 160° UP - 130° DW | 0°/90° | 60° | 12000 |
| 2.7m | 4-方向 ±100° L/R - 160° UP - 130° DW | 0°/90° | 60° | 12000 |
|
編織 : |
多層鎢絲編織 |
|||
| 探頭 ? | 工作距離 | 彎曲半徑 | DoV | FoV | 像素 | 編織 |
| 0.5mm |
定制設計可達2000mm |
min. 20mm | 0° | 70° | 600 |
PU |
| 0.7mm |
定制設計可達2000mm |
min. 20mm | 0° | 70° | 600 | PU |
| 0.9mm |
定制設計可達2000mm |
min. 20mm | 0° | 70° | 600 |
PU |
| 1.2mm |
定制設計可達2000mm |
min. 20mm | 0° | 70° | 600 | PU |
| 1.4mm |
定制設計可達2000mm |
min. 20mm | 0° | 70° | 10000 |
PU |
| 1.6mm |
定制設計可達2000mm |
min. 20mm | 0° | 70° | 10000 | PU |
| 1.8mm |
定制設計可達2000mm |
min. 20mm | 0° | 70° | 10000 | PU |
| 探頭 ? 2.4mm | ||||
| 長度 | 彎曲 |
DoV |
FoV | 像素 |
| 0.4m | 2 方向 ±120° L/R | 0° | 45° | 6000 |
| 1.5m | 2 方向 ±120° L/R | 0° | 45° | 6000 |
| 2.0m | 2 方向 ±120° L/R | 0° | 45° | 6000 |
| 2.7m | 2 方向 ±120° L/R | 0° | 45° | 6000 |
| 探頭 ? 3.5mm | ||||
| 長度 | 彎曲 |
DoV |
FoV | 像素 |
| 0.7m | 2 方向 ±120° L/R | 0° | 50° | 8000 |
| 1.0m | 2 方向 ±120° L/R | 0° | 50° | 8000 |
| 1.3m | 2 方向 ±120° L/R | 0° | 50° | 8000 |
| 1.5m | 2 方向 ±120° L/R | 0° | 50° | 8000 |
| 探頭 ? 4.0mm | ||||
| 長度 | 彎曲 |
DoV |
FoV | 像素 |
| 1.0m | 2 方向 ±120° L/R | 0°/90° | 60° | 11500 |
| 1.3m | 2 方向 ±120° L/R | 0°/90° | 60° | 11500 |
| 1.5m | 2 方向 ±120° L/R | 0°/90° | 60° | 11500 |
| 2.0m | 2 方向 ±120° L/R | 0°/90° | 60° | 11500 |
